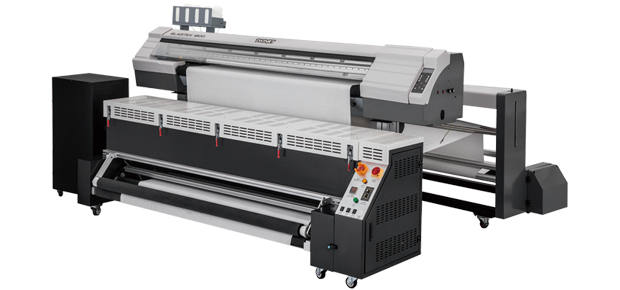

ELASTEX 1800Digital Printing for Elastic Knitted Fabric

The elastic fabric has a significant share in the clothing sector with high added value due to its comfortable feeling. There are many problems like requiring for a vast investment, occupying a large area, needing complicated maintenance, etc. in the solution of previous self-adhesive belt transmission textile printing, which turns to generate waste water discharge, pollution of plastic of belt, etc. The appearance of ELASTEX1800 completely prevents these problems.

CATALOGUEICCVIDEO
FEATURES

▇   Special designed for elastic knitted fabric printing instead of self-adhesive belt transmission
▇   EPSON DX5 micro piezo electric print heads are alternately arranged ,with the output accuracy of up to 1440dpi and the printing speed of up to 55㎡/h, supporting variable- sized droplet technology.

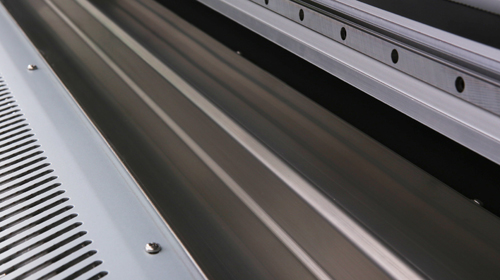

DUAL-ROLLER STEPPING SYSTEM

When the elastic fabric is printed, the fabric deformation can be prevented by fixed horizontal and vertical tension obtained and good flatness would be generated, which can fully utilize the best spraying distance of the nozzle to get a good printing accuracy. The roller-type stepping prevents deformation, springing, hanging and other problems caused by a pinch roller to achieve easy printing.

POST-PRINTING ONLINE DRYING SYSTEM

The fabric will enter into the drying process immediately after printing to avoid the sticky dirt generated on the fabric when entering into a twitch roller. The drying temperature and wind force could be adjusted to ensure the adaptability of a fabric which is thin or thick.

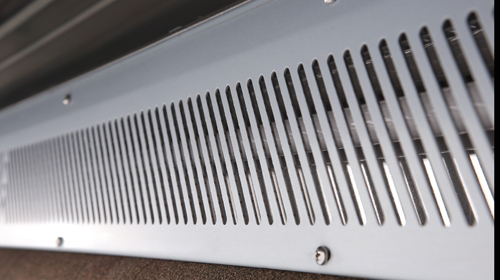

INSTANT WASTE INK COLLECTING SYSTEM

The system can easily handle the ultra-thin fabrics since the excessive ink droplets passing through the fabric upon printing would be uniformly collected by the waste ink tank and it is only required to clean the waste ink tank regularly to avoid drainage of waste water.

FEEDING AND TAKE-UP SYSTEM

The brand new feeding and take-up system fully takes account of the tension control of elastic fabric so that the fabric will not be over stretched, tilted, or wrinkled in the course of transfer and even if it is full-elastic fabric, the size error could be controlled within 1%.

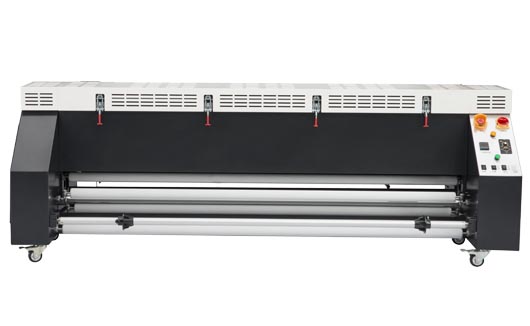

INSTANT DRYING & HEATING SYSTEM

Its two-sided-heating and fully-closed design can meet the requirements of disperse dyes sublimation with full color development, and when it is also used as the drying unit, the energy efficiency can be improved and the electricity consumption can be reduced

PROFESSIONAL PRINTING RIP SOFTWARE

It supports the hyperne screening technology conducting multi-channel color separating with a unique function of multiple duplicating, which can fully respond to the requirements of various patterns by the digital printing.


SPECIFICATIONS
