RH-186W SERIESRH-1864W/RH-1866W

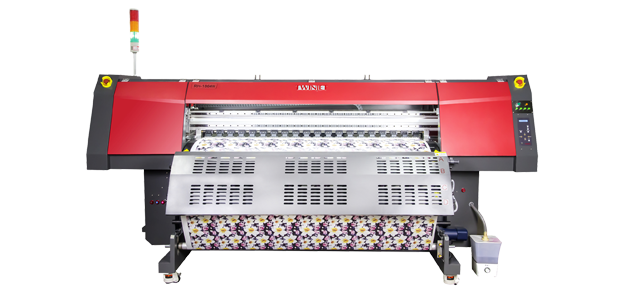

1.8m RICOH GEN5 Industrial Digital Printer for Transfer Paper

CATALOGUEICCVIDEO
FEATURES
Equipped with Industrial RICOH GEN5 Steel Printhead
Double THK Quiet Linear Guide & MEGADYNE High-strength Belt
Top-level Configuration Ink Supplying System
Effective Drying System for Industrial High-speed Printing
Optimal Mechanical Design Alleviate the Wrinkle Problem of Transfer Paper
Intelligent Inspection Function of the Printer State

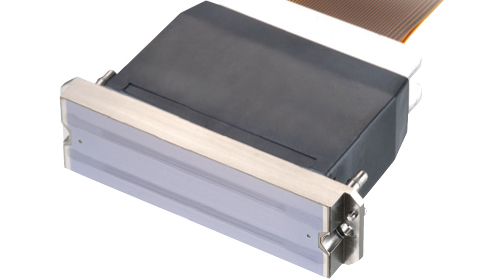

Equipped with Industrial RICOH GEN5 Steel Printhead

1280 nozzles, 60KHZ frequency (max), 6 grayscale of 0-35PL. GEN5 printhead has long service-life, high-resolution and fast-speed. Every nozzle can stand ink jetting of 100 billion times, the service life is 5-10 years.

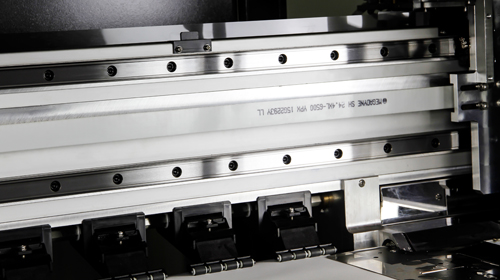

Double THK Quiet Linear Guide & MEGADYNE High-strength Belt

High-strength Industrial aluminum beam, double THK quiet linear guide and MEGADYNE high-strength belt guarantee the superior motion stability and the durability of long-time massive printing jobs.

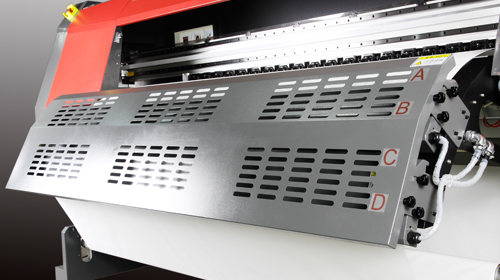

Effective Drying System for Industrial High-speed Printing

Drying system is well designed to make sure the reasonable drying time and strength, avoid staining problem which is caused by the printed transfer paper can’t dry in-time.

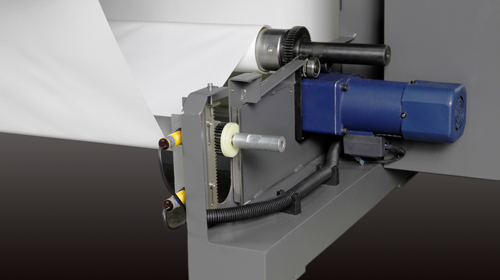

Optimal Mechanical Design Alleviate the Wrinkle Problem of Transfer Paper

Automatic Heavy Feeding and Take-up System, powerful platform suction, optimized paper pinch and the multidimensional calibration scales are integrated. These devices guarantee the printing resolution and paper feeding and take-up will not be influenced by the wrinkle problem, also the printhead scratch will not happen especially when customer applies very thin economy transfer paper.

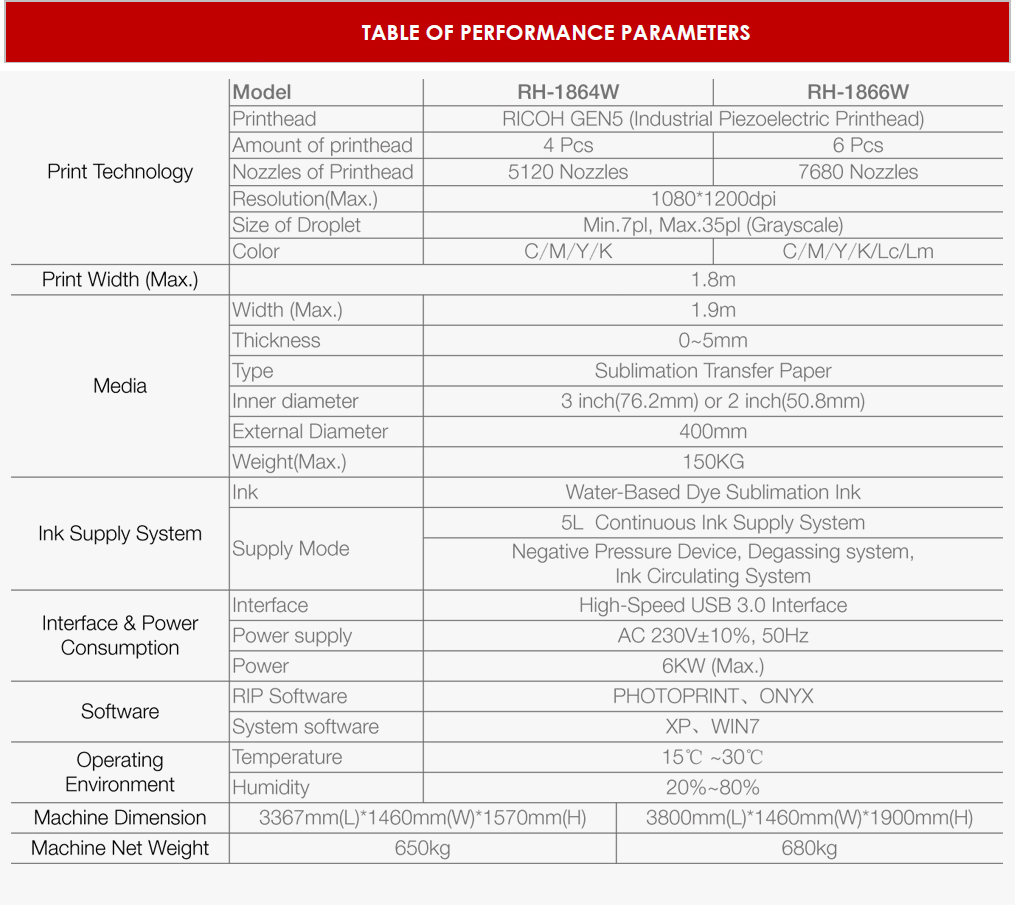

SPECIFICATIONS
