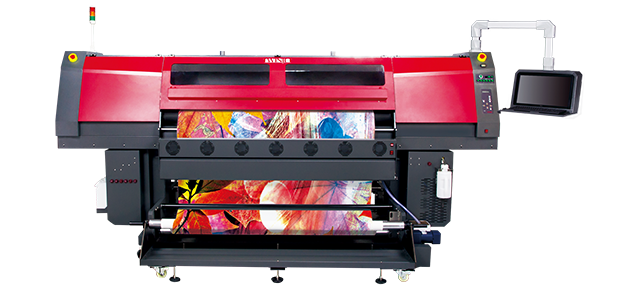

TP-186W SeriesRoll to Roll Digital Textile Printer

Roll to Roll Digital Textile Printer

CATALOGUEICCVIDEO
FEATURES

Equipped with Industrial RICOH GEN5 Steel Printhead
Double Roll Printing Avoids Media Deviating and Wrinkling during Feeding or Taking up
Double THK Quiet Linear Guide & MEGADYNE High-strength Belt
Top-level Configuration Ink Supplying System
Over-Sprey Ink & Waste Gas Collection and Filter System
Intelligent Inspection Function of the Ink State
One Machine Serves Multi-purposes

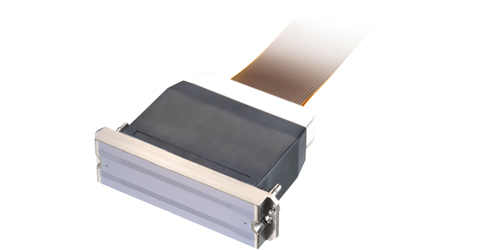

Equipped with Industrial RICOH GEN5 Steel Printhead

All-steel RICOH GEN5 Printhead, 6 grayscales of 7-35PL, each with 1280 nozzles. Ink circulating system avoids ink depositing and water-based ink missing or blocking caused by bubbles aggregating inside the printhead. Native electrical heating function enables users to set temperature from room temperature to 45℃, thus evading impacts on printing quality arising from temperature variation.

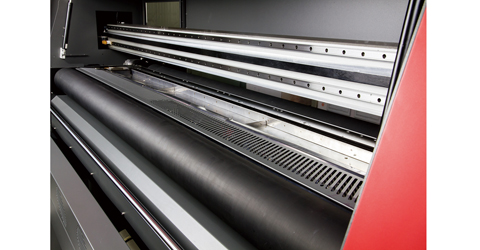

Two Roll Printing Avoids Media Deviating and Wrinkling during Feeding or Taking up

The steady double roll printing system ensures precisely stepping.The new roller-driven structure substitute feeding?shaft?with?pinch?roller , puts an end to media deviating, wrinkling, scratches, etc.

Double THK Quiet Linear Guide & MEGADYNE High-strength Belt

High-strength Industrial aluminum beam, double THK quiet linear guide and MEGADYNE high-strength belt guarantee the superior motion stability and the durability of long-time massive printing jobs.

Over-Sprey Ink & Waste Gas Collection and Filter System

Enclosed protective cover prevents misting from aggregating in the air,maintains the environment of printing room. Meanwhile, it also ensures operators’safety when carriage operating at high speed.

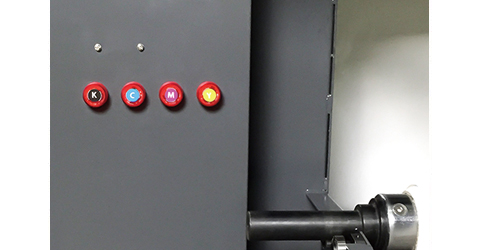

Intelligent Inspection Function of the Ink State

Both main ink supply tank and wasted ink tank are equipped with liquid level sensors and external sound and light alarm devices,to make you know the sate at the first time if lack of ink or the waste ink tank is full.Moreover,operating situation is showed on tower light by the light color and audible alerts.


SPECIFICATIONS
