TF-SERIESCotton/Flax/Silk/Nylon/Polyester Fabrics and Knitted Fabrics,Etc

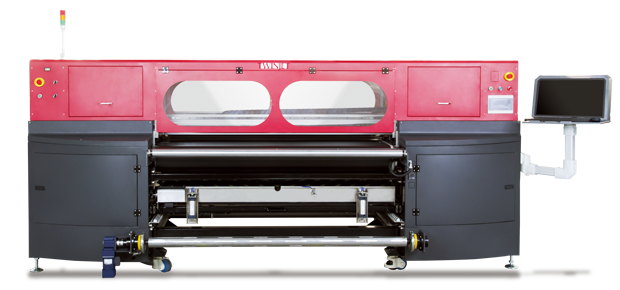

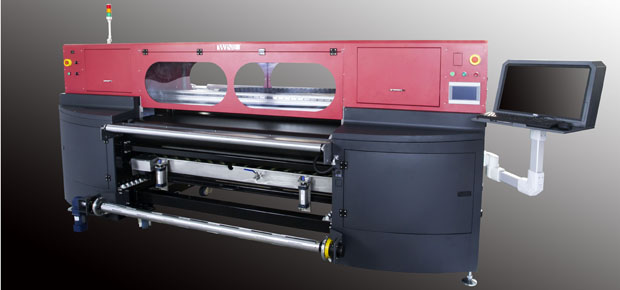

1.8m/2.6/3.2m Industrial Belt Textile Printer

CATALOGUEICCVIDEO
FEATURES
  • All-steel Industrial High-resolution RICOH GEN5E Printhead
  • Selected World Famous Brand Sparparts
  • Excellent Ink Circulating System,Bubble Free
  • Effective Belt Cleaning System
  • Smart PLC(Programmable Logic Controller)
  • Reliable Feeding and Take-up Syste

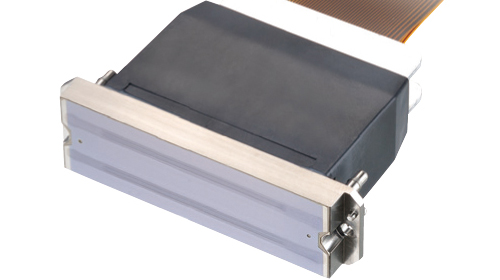

All-steel Industrial High-resolution RICOH GEN5E Printhead

RICOH GEN5E with all-steel structure, 1280 nozzles, max frequency : 60 KHZ, 7 class grey scale from 6pl to 35pl. Every nozzle can stand 100 billion times jetting, the service life of the printhead is around 5-10 years. Long-service life, high resolution and fast speed make RICOH GEN5 more and more popular in the digital printing industry.

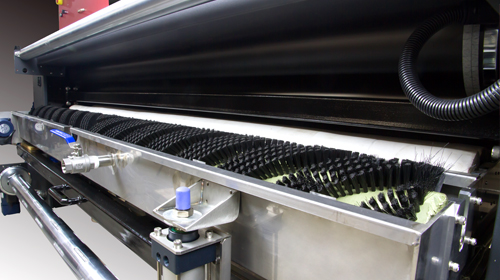

Effective Belt Cleaning System

Air Cylinder lift water spray cleaning device, high resolution air knife drying technology , guarantee the belt cleaning and dry and fabric staining problem free.

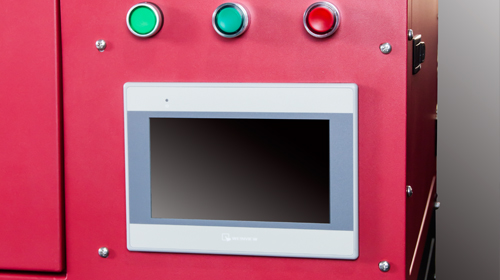

Smart PLC (Programmable Logic Controller)

Some functions such as the belt cleaning could be controlled by the touch screen (PLC), it is more intelligent and easy to operate.

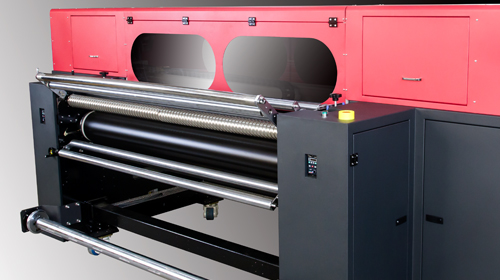

Reliable Feeding and Take-up System

Adopt high precision Switzerland automatic belt correction system, stainless steel air-shaft with safety chuck and torque motor, make TWINJET belt printer feed both woven and knitted fabrics precisely, stably.
The rolling type of Italy Cloth-Pressing Roller Structure design make sure the fabric stick on the belt closely and smoothly, no wrinkle of fabric during printing.

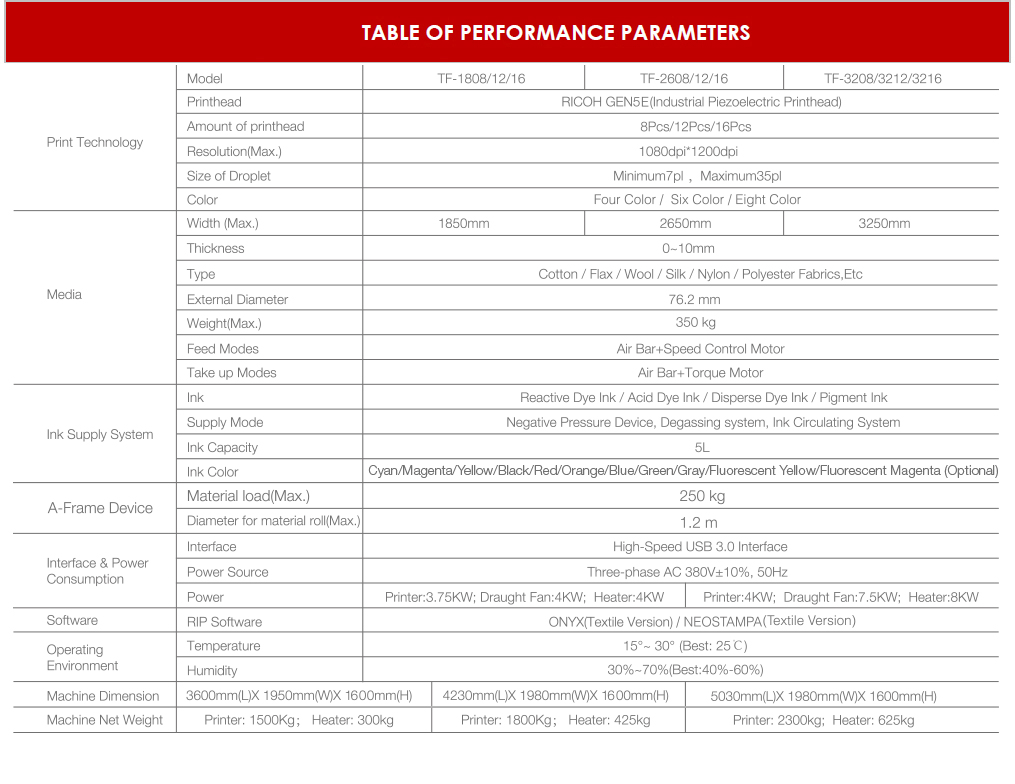

SPECIFICATIONS
