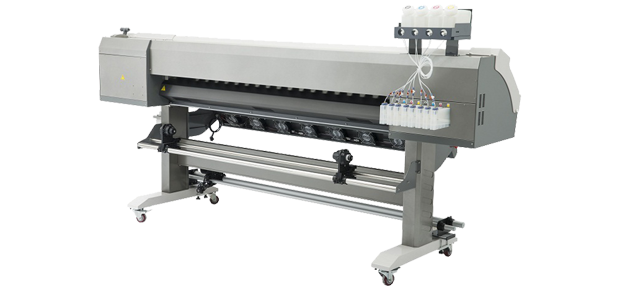

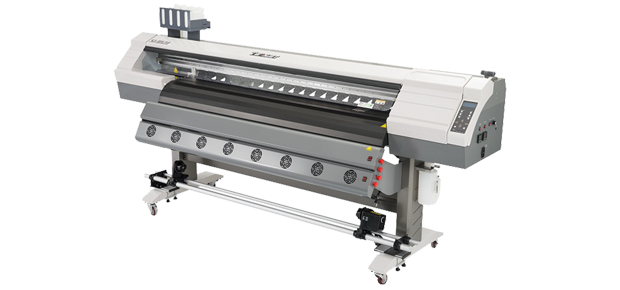

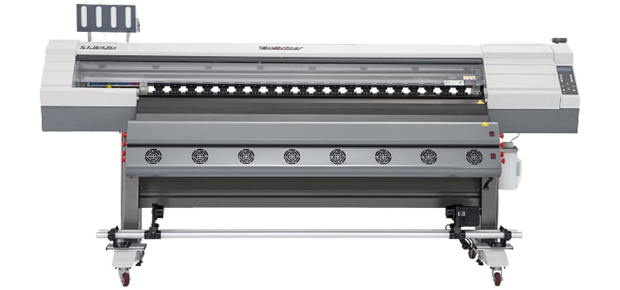

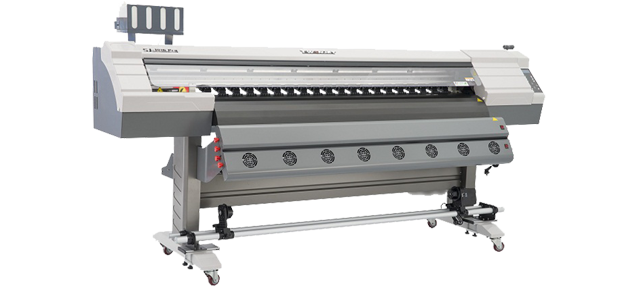

SJ-1816ProClassic ECO Printer for AD&SIGN

SJ-1816Pro is the most popular TWINJET ECO solvent printers. All the customers are impressed by its attractive appearance and the superior printing quality. It is classified into four types to meet different market demands, named Standard I, Standard II, Enhanced, Supreme.

CATALOGUEICCVIDEO
FEATURES

▇  EPSON DX5 micro piezo electric print heads alternately arranged
▇  Three-level changeable ink drop
▇  Max. output precision is 1440 DPI, printing speed at 33m2 per hourjue


MOVING SYSTEM

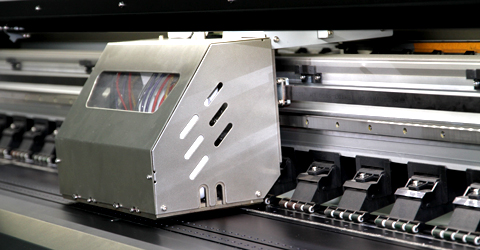

The linear mute guide rail from THK in Japan or HIWIN in Taiwan guarantees the smooth and steady movement of the print head, the long service life and low noise.

CLEANING SYSTEM

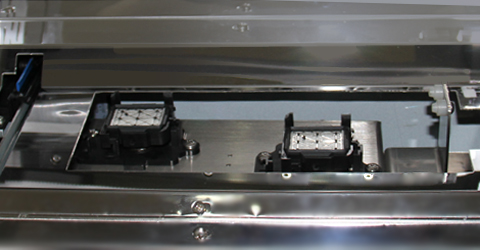

Safe and reliable passive lifting cleaning mechanism; with peristaltic ink pump greatly prolongs the service life of print head.

PRECISE POSITIONING

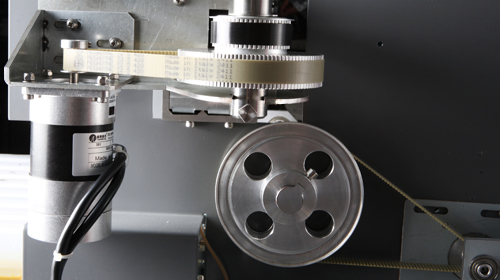

The High-power DC servo motor cooperating with high-accuracy raster and fully-closed positioning system ensures the precision of the droplet printing position.

PRINTHEAD HEIGHT ADJUSTMENT

The distance between print head and material can be adjusted by hand between 0-2mm according to materials differences.

FEEDING & TAKING UP SYSTEM

Automatic Feeding & Take Up System guarantees the smooth and reliable material output.

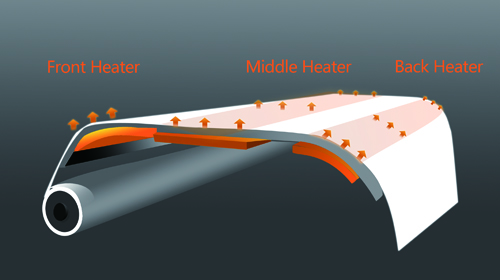

THREE-SECTION CONTROLLABLE HEATING

The ink absorption of materials is improved greatly through the front, middle, back controllable heating devices.


SPECIFICATIONS
