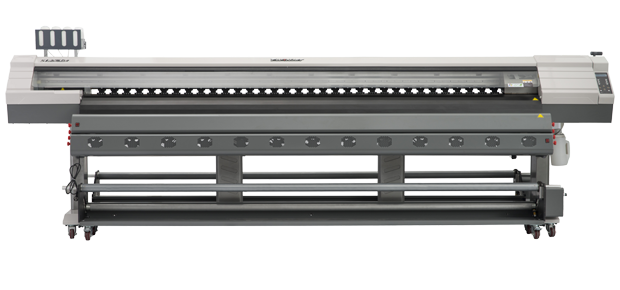

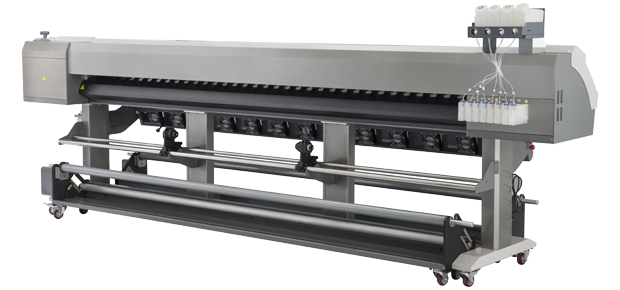

SJ-3216ProUltra Large-format and High- Precision ECO Printer

SJ-3216Pro ECO solvent printer can do the job which is impossible before. 3.2 M large format, 1440 dpi precision and 43 m2/h speed rolled up into one. If you are boring with bargaining and need core competence, please come with this excellent printer.

CATALOGUEICCVIDEO
FEATURES

▇  EPSON DX5 micro piezo electric print heads alternately arranged
▇  Three-level changeable ink drop
▇  Max. output precision is 1440 DPI, printing speed at 43m2 per hour



MULTI-TASK EXECUTIVES

The special Automatic Feeding & Take Up System realize several printing jobs being performed with one SJ-3216Pro printer simultaneously, and guarantees the smooth and reliable material output.

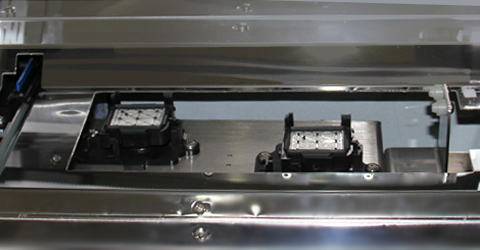

CLEANING SYSTEM

Safe and reliable passive lifting cleaning mechanism; with peristaltic ink pump greatly prolongs the service life of print head.

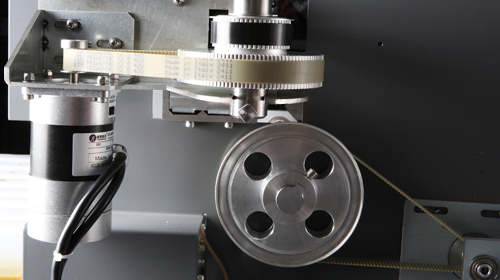

PRECISE POSITIONING

The High-power DC servo motor cooperating with high-accuracy raster and fully-closed positioning system ensures the precision of the droplet printing position.

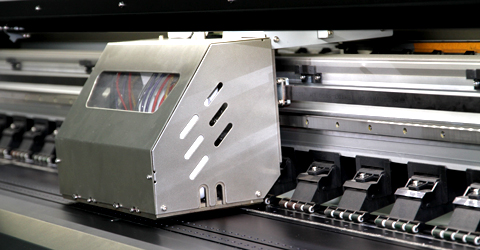

PRINTHEAD HEIGHT ADJUSTMENT

The distance between print head and material can be adjusted by hand between 0-2mm according to materials differences.

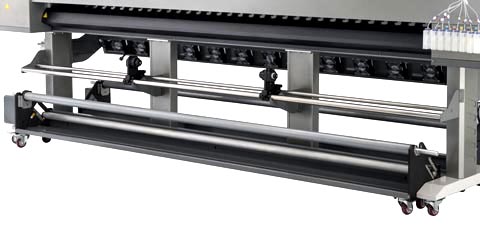

FEEDING & TAKING UP SYSTEM

Automatic Feeding & Take Up System guarantees the smooth and reliable material output.

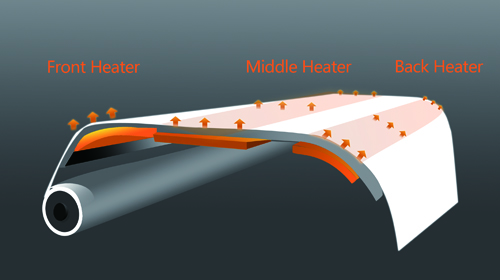

THREE-SECTION CONTROLLABLE HEATING

The ink absorption of materials is improved greatly through the front, middle, back controllable heating devices.


SPECIFICATIONS
